Description

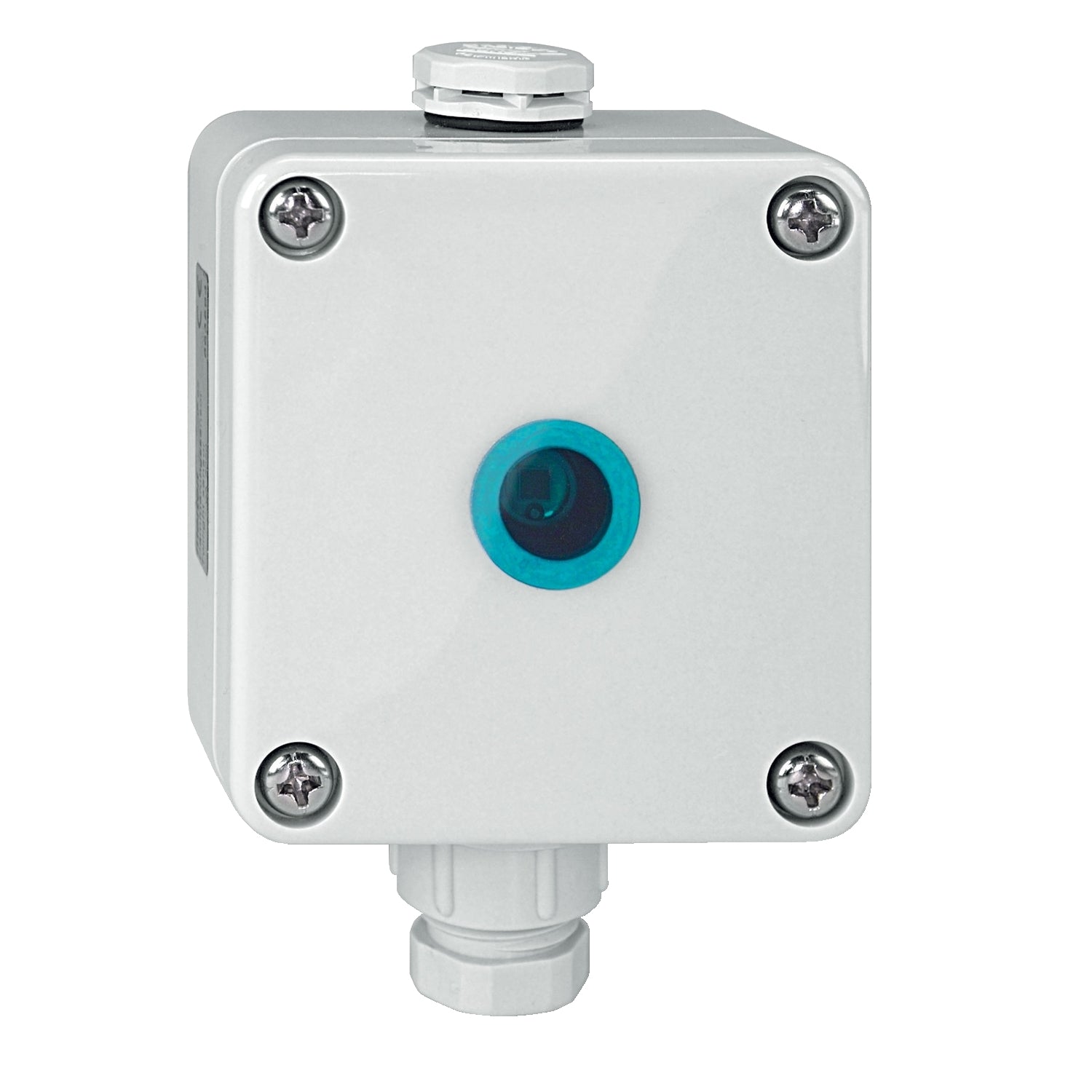

Twilight sensor. The twilight sensor is required to record and evaluate brightness. Brightness is recorded via a photoelectric diode and electronically converted into an analogue output signal of 0 V - 10 V. For external installation and connection to the weather station REG-K/4-gang or the analogue input REG-K/4-gang. These two devices provide the supply voltage necessary to operate the sensor. Measuring range: 0 to 255 lux, linear. Output: 0-10 V short-circuit-proof. External power supply: Voltage: 24 V DC (15-30 V DC). Power consumption: approx. 5 mA. Incoming cable: using PG7 screw fitting. Recommended cable: 3 x 0.25 mm. Type of protection: IP 65. Dimensions: 58 x 35 x 64 (W x H xD). Colour: light grey.
